AB YACHTS 100

AB 100 is designed to give unique and unexpected emotions and live your cruise as an exciting experience in the utmost comfort. AB 100 is equipped with 3 MAN engines of 2000 H.P each and 3 MJP waterjet and can reach 55 knots maximum speed without vibrations and in total stability and maximum comfort of navigation.

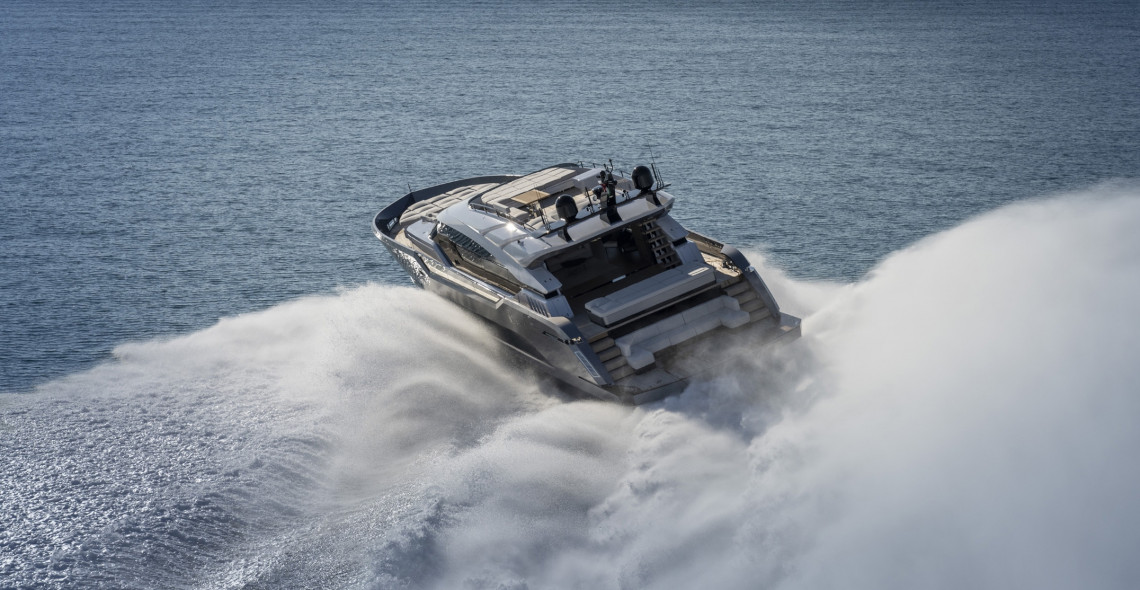

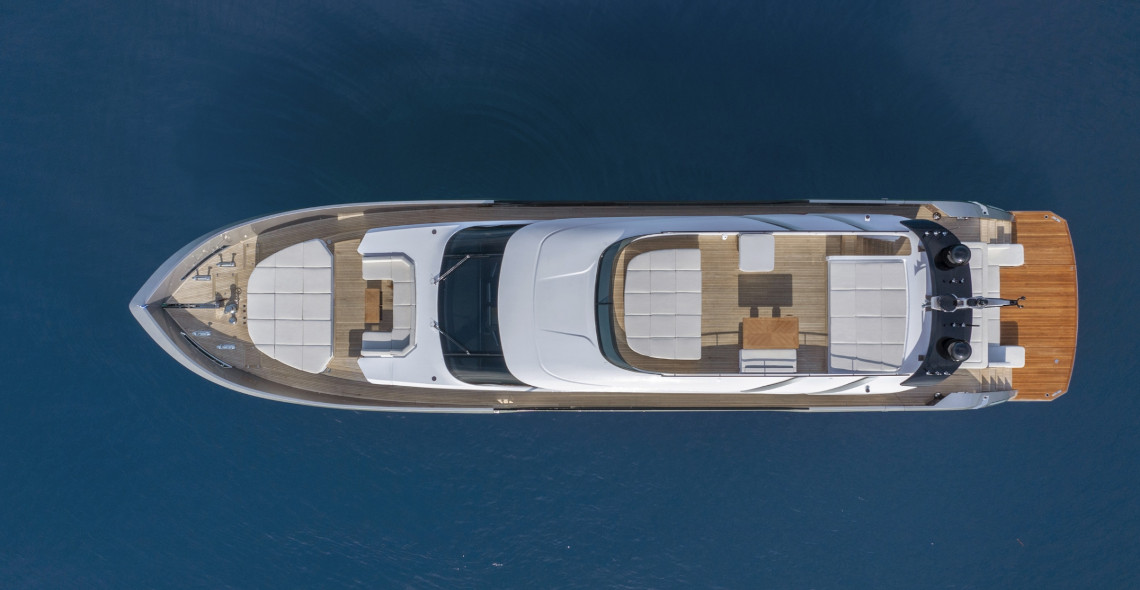

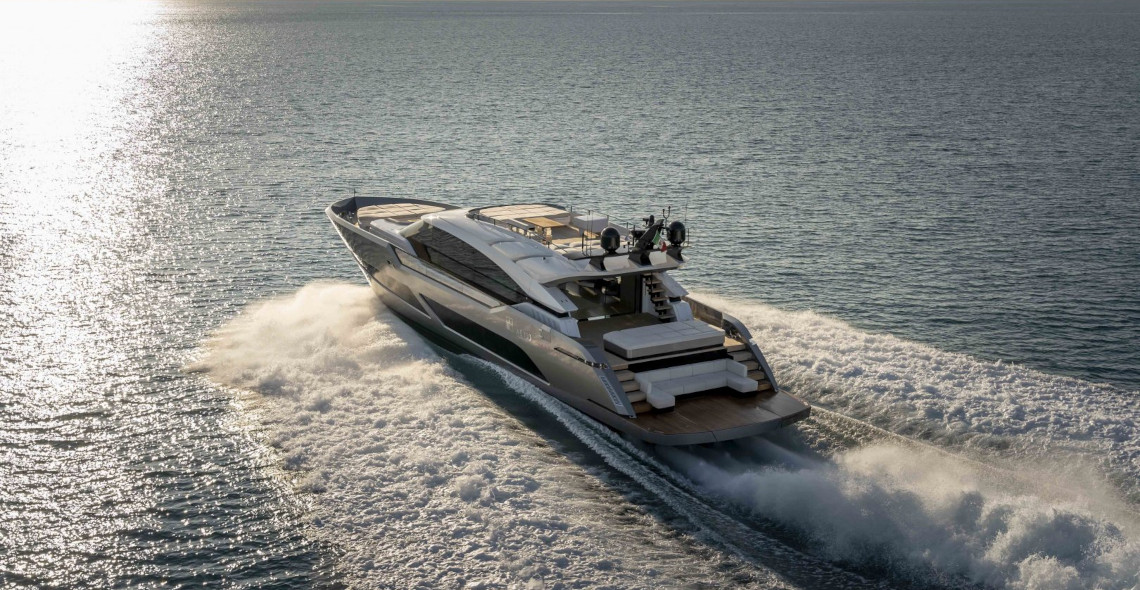

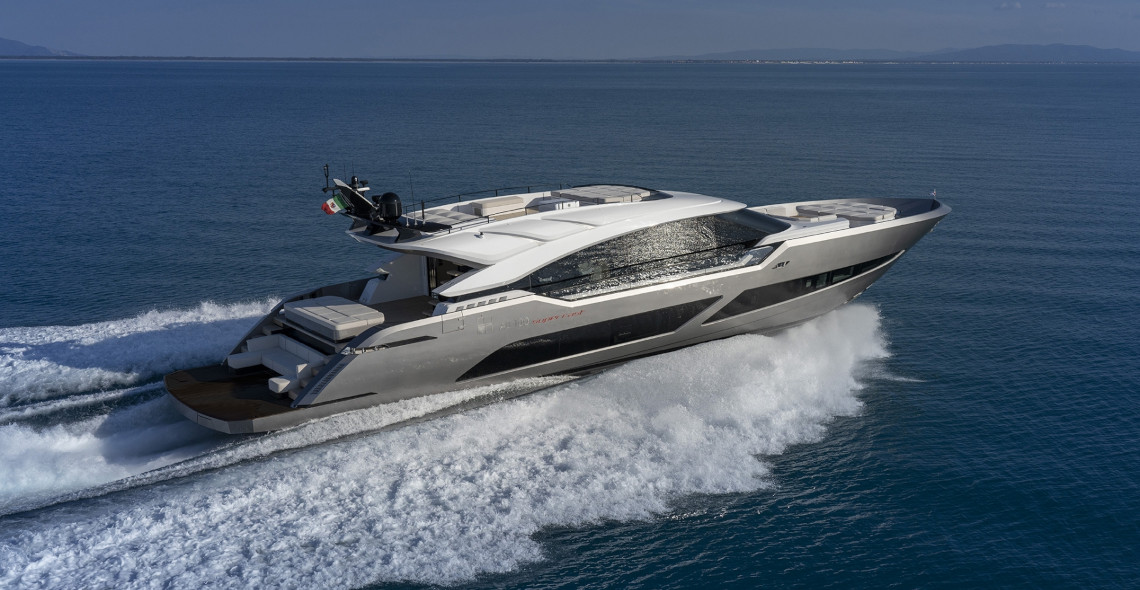

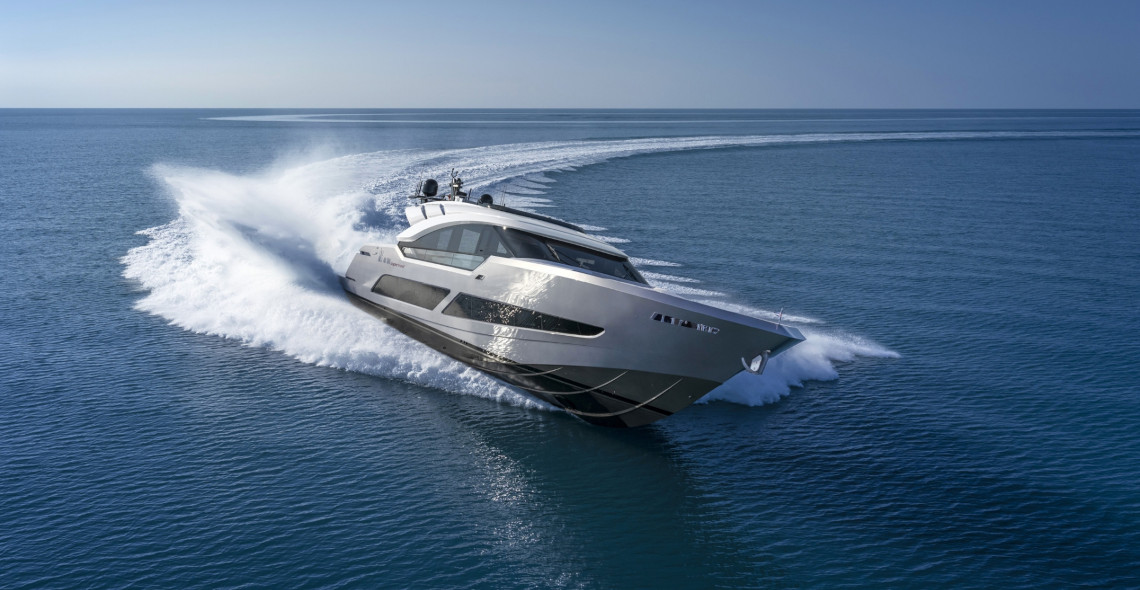

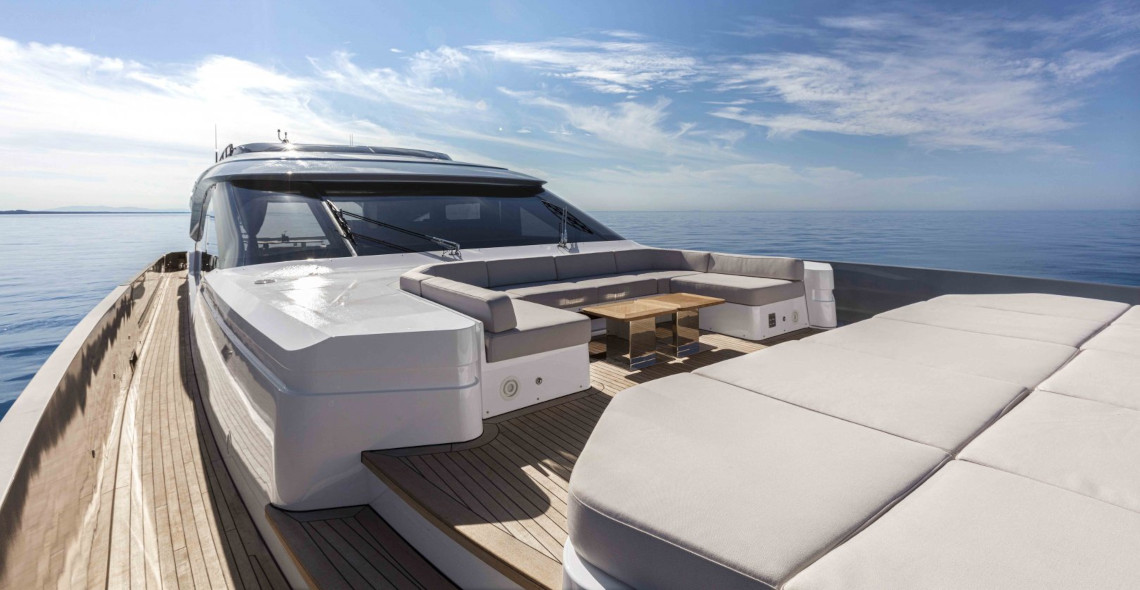

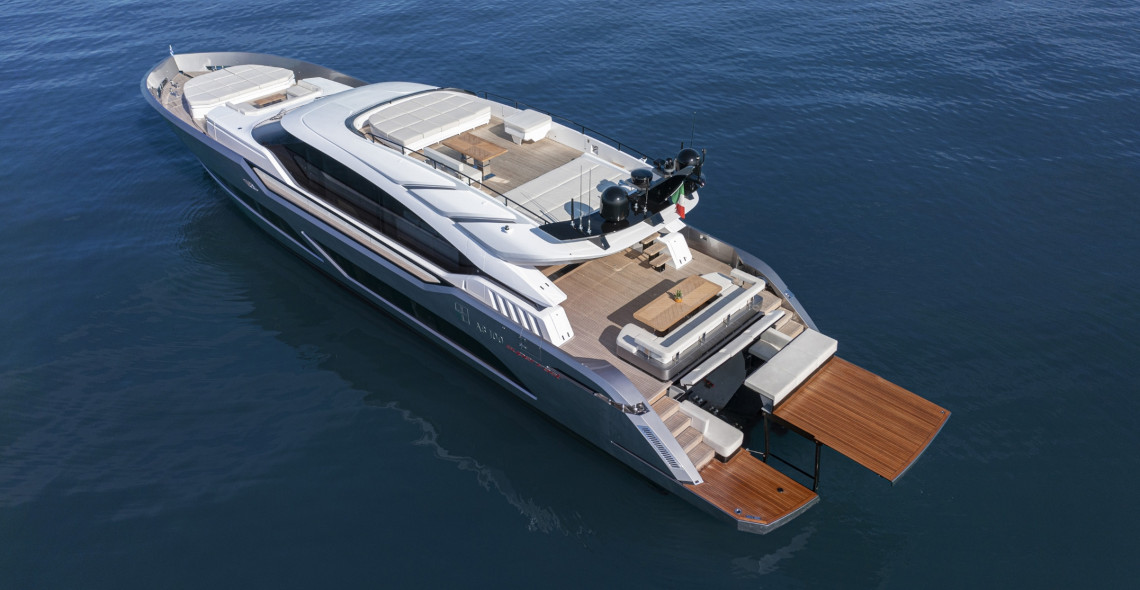

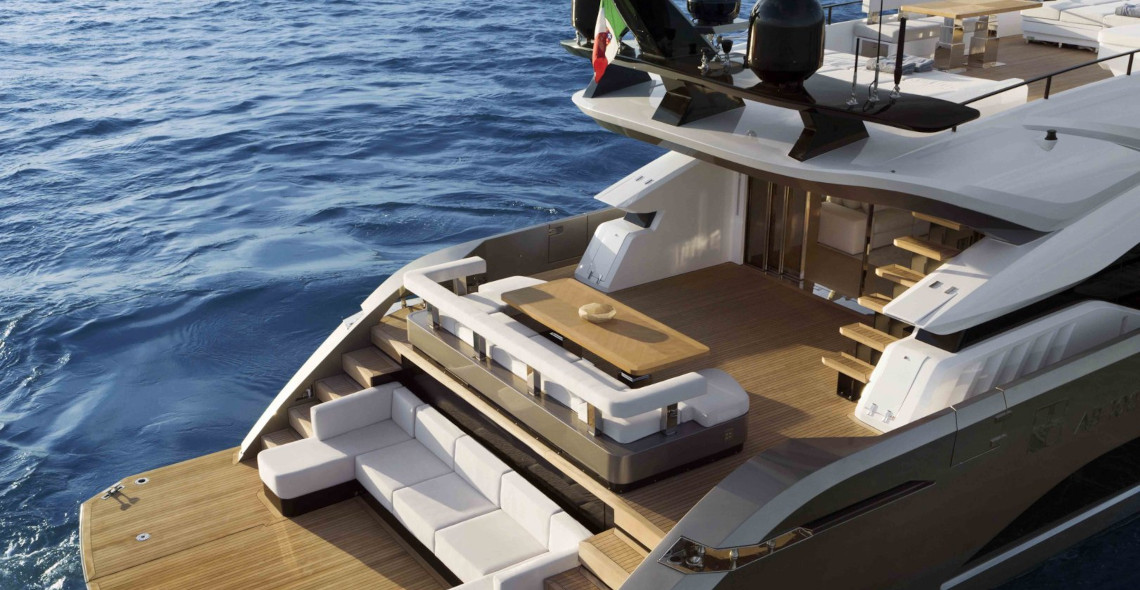

Yacht exterior

  • Project Image
  • Project Image
  • Project Image
  • Project Image
  • Project Image
  • Project Image

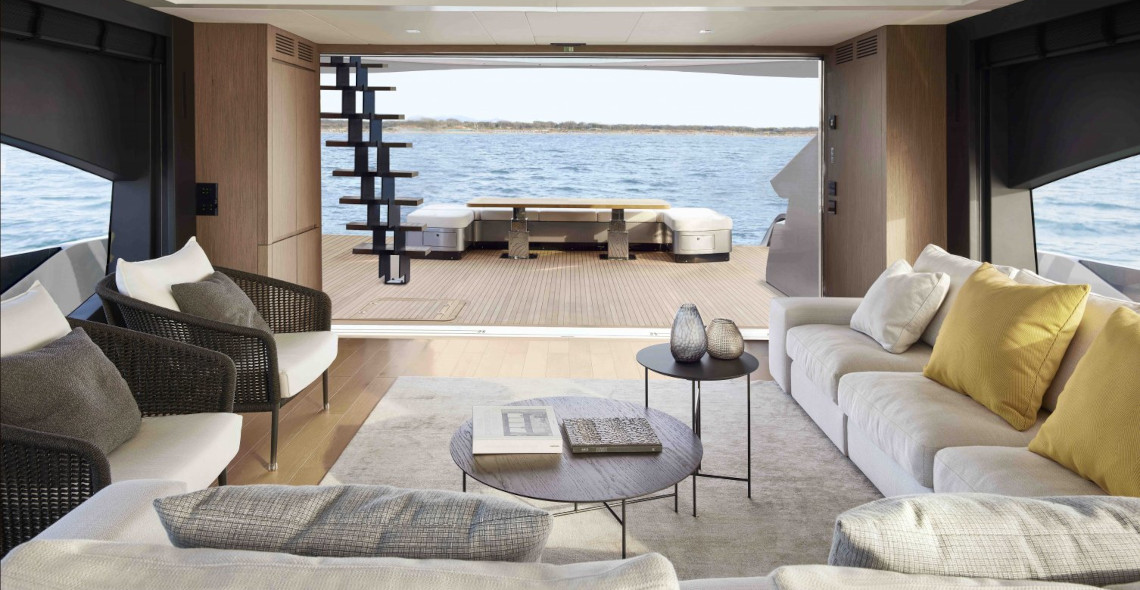

Yacht interior

  • Project Image
  • Project Image
  • Project Image
  • Project Image
  • Project Image

Yacht Video

Yacht layout

  • Project Image

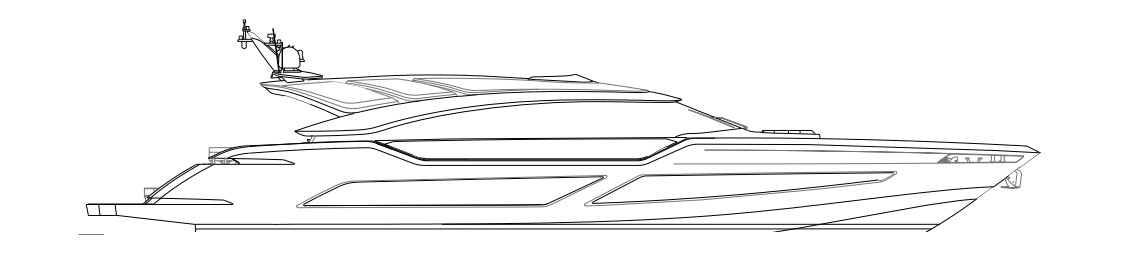

    Profile

  • Project Image

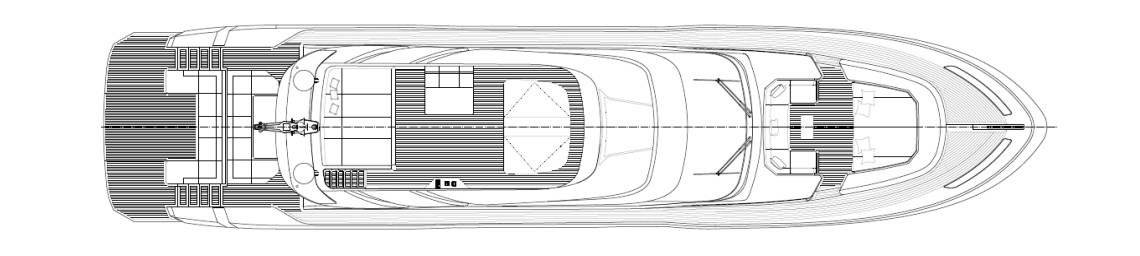

    Sun deck

  • Project Image

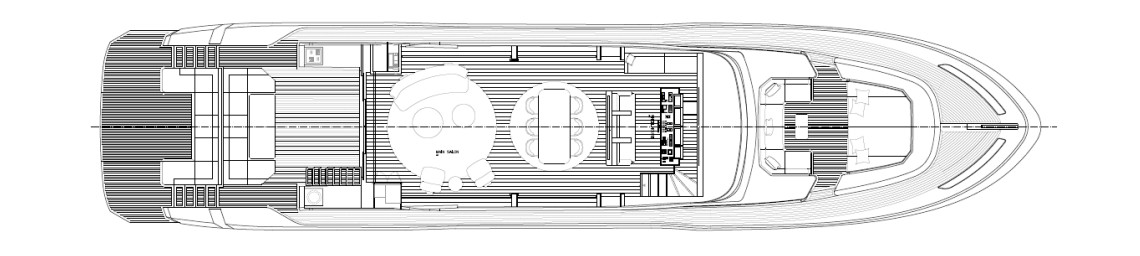

    Main Deck

  • Project Image

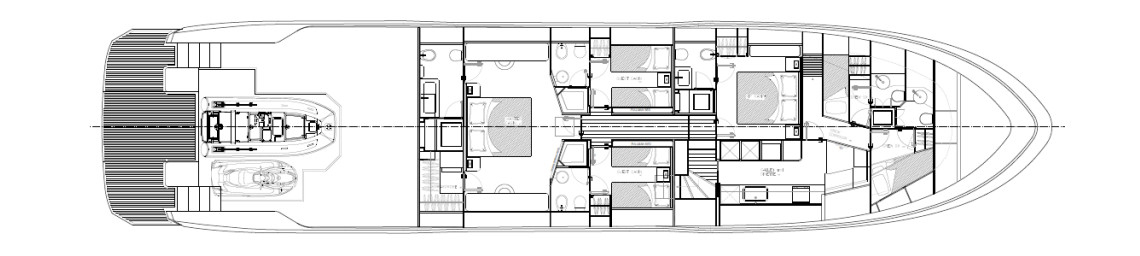

    Lower deck

Yacht specifications

DIMENSIONS
LENGTH OVERALL 30,50 M / 100,7 FT
BEAM 6,80 M / 22,37 FT
DRAFT 1,30 M / 4,31 FT
DISPLACEMENT FULL LOAD 90,00 T / 198.416 LBS
PROPULSION & POWER
ENGINES 3 x MAN 12V of 2.000 HP EACH
TRANSMISSION 3 x ZF 3050 GEARBOXES
WATERJETS 2 x MJP STEERABLE + 1 x MJP CENTRAL BOOSTER
STABILIZERS SEAKEEPER 26 GYROSCOPIC STABILIZERS
AUXILIARY UNITS 2 x SILENCED KOHLER GENERATORS OF 28 KW WITH PARALLEL
TANK CAPACITY
FUEL TANK 11,300 L / 3090 GL
WATER TANK 2,000 L / 528 GL
BLACK / GREY WATER TANK 1,350 L / 356 GL
ACCOMODATIONS
GUESTS & CREW 9 + 3
PERFORMANCE
MAXIMUM SPEED UP TO 50+ KN
CRUISING SPEED 45 KN
RANGE AT CRUISING SPEED UP TO 550 NM
CONSTRUCTION
HULL & SUPERSTRUCTURE VINYLESTER RESIN ON EPOXY BASE WITH KEVLAR AND CARBON REINFORCEMENTS, DIVINYCELL SANDWICH PANELS UNDER VACUUM CONSOLIDATED
